Sail Trim & Speed

by Bruce Goldsmith

The skipper winning the most races inevitably is going to be the one with the best touch. I call touch the simultaneous coordination of steering and sail trim with wind and sea conditions.



Tactics and wind patterns can be reduced to a matter of odds; they tend to be spread out over a group of equal sailing minds over a given period of time. But the guy who wins most is the one who can squirt out on two out of five starts, or squirt out of a pack after rounding a leeward mark.



This same fellow doesn't even seem to be pointing particularly high, but he always winds up to windward.



This guy has a great touch. A few people seem to be born with it. Most aren't. But studying how to coordinate steering and sail trim to the wind and sea conditions, all at the same time, should help you develop your own touch.

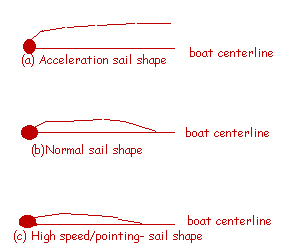

First, a little bit about your main-sail. It's the key driving force in most small boats. In general, a full sail with its maximum draft well forward has what I call an accelerating shape (Figure 1a). This shape has power but doesn't really produce top speed and pointing ability.

Now a sail that is very flat with its maximum draft aft has a shape that can give you the potential for high speed and high pointing ability (Figure 1c). But it cannot provide the top acceleration and power you can get from the accelerating shape.



You can achieve this complete range of shapes on most boats simply by changing the sail's luff tension and by adjusting the trim of the mainsheet. The greater the luff tension on the sail the further forward the draft will be pulled. If the mainsheet is also trimmed down, the mast (on a small boat) will deflect, which removes the draft from the front of the sail.



This downward trim also tightens the leech, actually adding a small amount of draft in the after part of the sail. The total effect of all these adjustments is that the entire draft will be reduced and moved aft in the sail.



Sailing upwind is really a never ending series of accelerations; the shifting to higher speeds and higher pointing angles and then a slowing down again as the wind comes and goes.



The smaller and lighter the boat and the more erratic the wind velocity, the more pronounced the acceleration and course headings are going to be.



Simultaneously, he will alter course from what has been almost a close reach to a high pointing angle. And, as the inevitable slowdown comes once again from a drop in wind velocity, he gradually eases the sheet and makes the boat drop off to an angle that is again a close reach in time for the next puff.



If this lull is going to last more than a few seconds, it is important in small boats to use the speed you have built up to help get your boat to windward. The best way to do this is to hold the sail trim, steer a little higher, and simultaneously roll the boat to windward in a slow manner.



In extreme lulls this tactic can land you a couple of boat lengths to windward without losing much potential speed. The theory here is that the sail is going to luff no matter what direction you point the boat, for the only wind left now is caused by boat speed, and the relative wind is going to be directly on the nose no matter where you are headed.



But this condition will abruptly change again as the next puff hits. It is essential that you be set up to accelerate again as the puff comes by easing the sheet heading off slightly, and letting the boat heel.



The guy with the great touch can first trim loosely for acceleration; but he is also able to change to a high speed, high pointing sail shape just as he reaches the end of his maximum acceleration.



This maneuver sets the boat up for the "squirt" that everyone cherishes and it is especially noticeable in small centerboarders.



Ideally, you should always trim the sails and position the boat with gentle sheeting changes and smooth steering - all done just an instant before the puff hits. If you do it too soon you will waste precious distance sailing to leeward.


If you do it too late you will waste the first part of the puff and must use some of it to get the right trim and angle for acceleration. This delays the squirt and, with boats around you, can be the difference in having clear air or not.



When you are sailing in steadier winds it's more important to maintain maximum boat speed, and individual spurts have less significance. In this case you must search for an upwind groove. When you have found it the boat will nearly sail itself. It should have a very slight weather helm, and be sailing nearly flat.



Small changes in wind velocity and heeling movement will hardly change this feel at all. But remember this steering groove is only made possible by the shape and position of the sails. You must continually try to flatten your sails more to the high speed, high pointing sail shape.



And if you start to sail too fat off the wind, the boat will gyrate quickly from the weather helm to a lee helm as the boat becomes level again from its former heeling angle. But if you try to sail to windward this way you will be sailing more by observing the leading edge of the sails than by really feeling the groove.



If the sails are set too flat the boat will tend to have a constant lee helm, for the same forces that created a weather helm with a full draft sail now cannot deflect the wind enough to get a bite to windward with the excessively flat sail.



Heeling the boat slightly will decrease the lee helm a little bit, but it will also reduce the drive. You will notice the boat never squirts on a puff.



If there is someone alongside who seems to be able to steer his boat a little higher, and can sail faster with sails set flatter, eat your pride and set your own sails a little fuller. And steer the boat at a little less critical angle. The feeling is one of constant blah when a sail has been set too flat.



When you are sailing "in high point conditions", namely steady medium force air of 5 to 15 mph with no waves, the groove will be very close to a point at which the sails are set too flat. In these conditions make sure you get the boat moving properly again after each tack, and closely watch for the occasional lull. Steering the boat now becomes the critical factor,
for the boat must be kept at just the right pointing angle. Many times the sail will be so flat forward that you can be too high on the wind and pinching, and it still won't luff.



And by the time you feel the boat slowing, it is already too late and falling off won't help much. The reason: your sails are not set to give you that fast acceleration again.



So far I've tried to show the sail setting/steering relationships which can run from one extreme of acceleration to the other, which features super high speed and high pointing. My discussion assumes a moderate sailing breeze of about 5 to 15 mph. But sailing in winds on either side of this range should merely narrow your thinking toward the sail shape that applies.


For instance, if you're in a drifter, steering and sail set will remain in the acceleration stage longer. Even after the boat gets moving, the sail shape and steering won't change much toward the high speed/high point range.



However, in winds over 15 mph acceleration isn't the problem; you are now sailing almost entirely in the high speed/high point end of the range.



Closely note, though, that waves can really play havoc with your touch in these heavy air conditions. You'll also find you have a tendency to under react to the changing situation when the really big breeze comes in. Strong wind and relatively small waves are typical of a rapidly increasing breeze and it is necessary to get to the flat end of the sail set range very quickly.



The tipoff here is that weather helm increases and the boat feels glued into the water and bound up. It happens because the mainsail has not been flattened enough for the wind. In other words, you never shifted out of second gear - you have power but no boat speed. Now as the waves build up you might tend to keep flattening your sails even more to make the boat free up and get into high gear.


This is a fatal mistake, for at this point you will be pointing too high and waves will be giving you trouble, forcing you to make leeway.



In short, when you finally get around to flattening way in for the breeze, you really should be moving back to a slightly fuller sail set and driving off a little bit more to compensate for the waves. This is a time when that groove can really be elusive.



Coordinating your steering and sail set with the wind and sea conditions is a subtle matter. Changes must be smooth and simultaneously coordinated, If you are not moving your boat as fast as some of your competitors you've got to react immediately with a course change and a different sail set.



Believe me, it's a constantly changing situation. Running from acceleration bursts to the high speed range is always an exhilarating experience, and you can't learn how to do it overnight. But once you get it you can lock in the groove and really perfect that bit of expertise every great sailor carries around with him - that little technique called touch.
